Automatic Chicken Farming Equipment For Sale

FOB Reference Price:Get Latest Price
US $800-4,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
BY
Model Number:
BYAUTO-01
chicken cage layer and type:
3, 4, 5, A type and H type
Capacity:
96 chickens/cage, 120 chickens/ cage, 160 chickens/cage
Feature:
easily install, durable, good design, save time and labor
Automatic feeding:
ladder type, operation smoothly, low noise, save feed etc
Range:
At least 5000 layers
Our service:
design, quote, shipping, install, maintenance
Rated Power:
0.75KW - 0.11KW
Rated Voltage:
220V/380V
Connected with the Silo:
5,000KGS to 15,000KGS
Working Speed:
10 - 15 Meters/Min
Supply Ability
Supply Ability:
5 Set/Sets per Day
Packaging & Delivery
Packaging Details
according to customer requirement.
Port
tianjin port

Automatic Chicken Farming Equipment

  • Automatic Feeding Equipment
  • Automatic cleaning Equipment
  • Automatic Egg collection system
  • Fan Ventilation System
  • Cooling, heating system



Automatic Equipment01.JPG



Automatic Feeding Equipment:



It including bracket, walking output system,  walking system, down feed system,  feed capacity adjust system,  electrical system

 Automatic Equipment.JPG



Automatic feeding main advantages:


1. each layer of sowing feed rate can be controlled, the down feed evenly.
2. The automatic feeding machine material is large, It heavy about 300-400 kgs than usual machine.

3. smooth operation, not derailed.According to the size of the hen house can provide three columns and four columns.








Technical date

NO.

Item

Specification

1

Source Type

AC, 3-Phase

2

Rated Power

0.75KW - 0.11KW

3

Rated Voltage

220V/380V

4

Outline Size

L by W by H = (2.3-2.7) by (1.2-1.5) by (2.0-2.25)m

5

Hopper Size

L by W by H = 0.66m by 0.256m by 0.5m

6

Working Average Rate of  the Hopper

Around 15 g/m

7

Feed Capacity of each Hopper

35KGS - 100 KGS/piece

8

Working Speed

10 - 15 Meters/Min

9

Structure Weight

550KG

10

Supporting Orbits

Thickness = 3.0mm, Diam = 50mm

11

Orbits Material

Hot deep galvanized Pipe

12

Transverse Auger Conveying Feeding Equipment

Diameter = 75mm to 150mm

13

Connected with the Silo

5,000KGS to 15,000KGS





 Automatic Feeding-1.jpg



QQ20150318165947.jpg QQ20150318165955.jpg

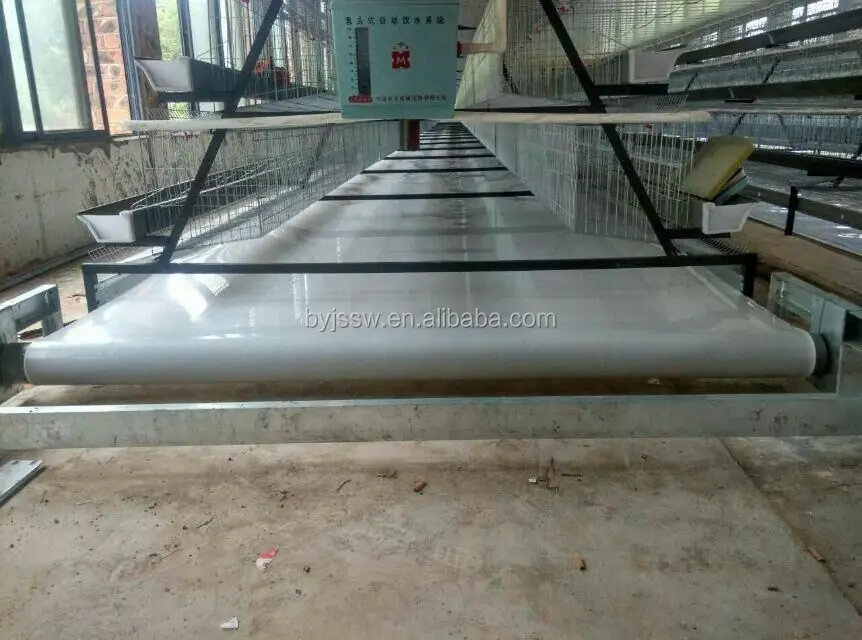

Automatic Cleaning Machine



We have two types:



1) Scraper Type Manure Removal






2) Conveyor Belt Type Manure Removal;




Automatic Egg Collection System:



1. Simple structure and steady performance
2. Feeding equality,and saving energy and workload
3. Durability and reliability
4. Reducing the rate of broken eggs
5. Increasing farming efficiency
6. Easy to use and manage
7. Rational structure and low energy consumption
8.Feeding high density, small footprint, saving land, and intensive high degree of economic efficiency









Fan Ventilation System:

Fan Itempoultry fan1380900
Sizemm1380*1380*400900*900*400
L*H*Wmm1270700
Blde Diamm1270770
Air Volumem3/h4450028000
PowerHP/KW1.5/1.10.5/0.37
Voltagev415/380/220415/380/220
FrequencyHZ50/6050/60
Propeller Rotation Speedr/min450520
NoisedB6555
Weightkg8550


.jpg





Cooling pad for temperture:

cooling pad.jpg



We also have many other poultry equipment.  Welcome you check our website or contact us,  24 hours service.
